Intellitronix LED Digital Dash Replacement Panel Compatible with Ford Bronco 1966-1977 (White)

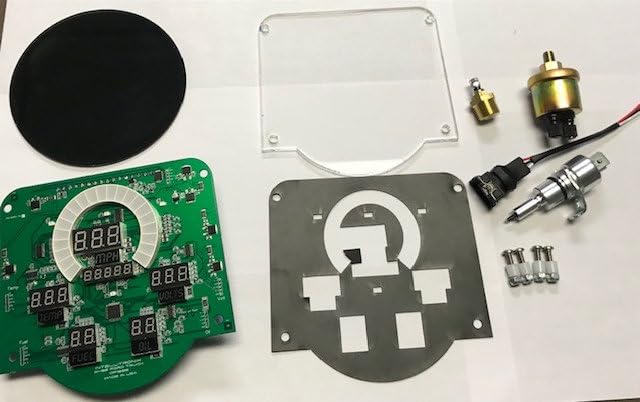

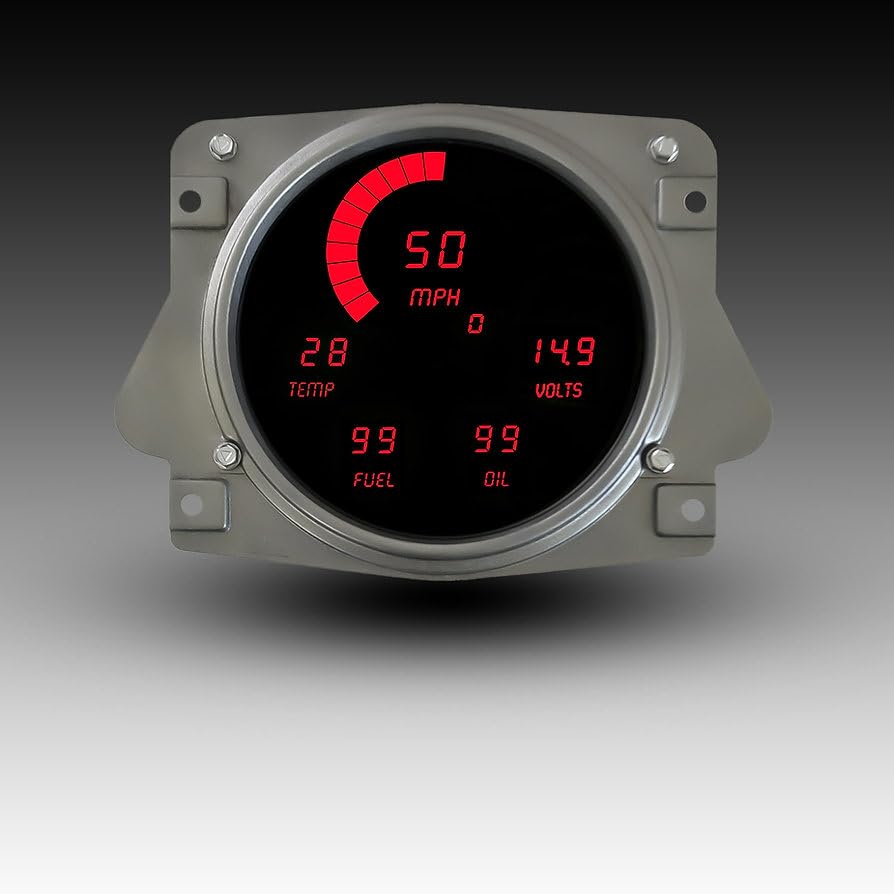

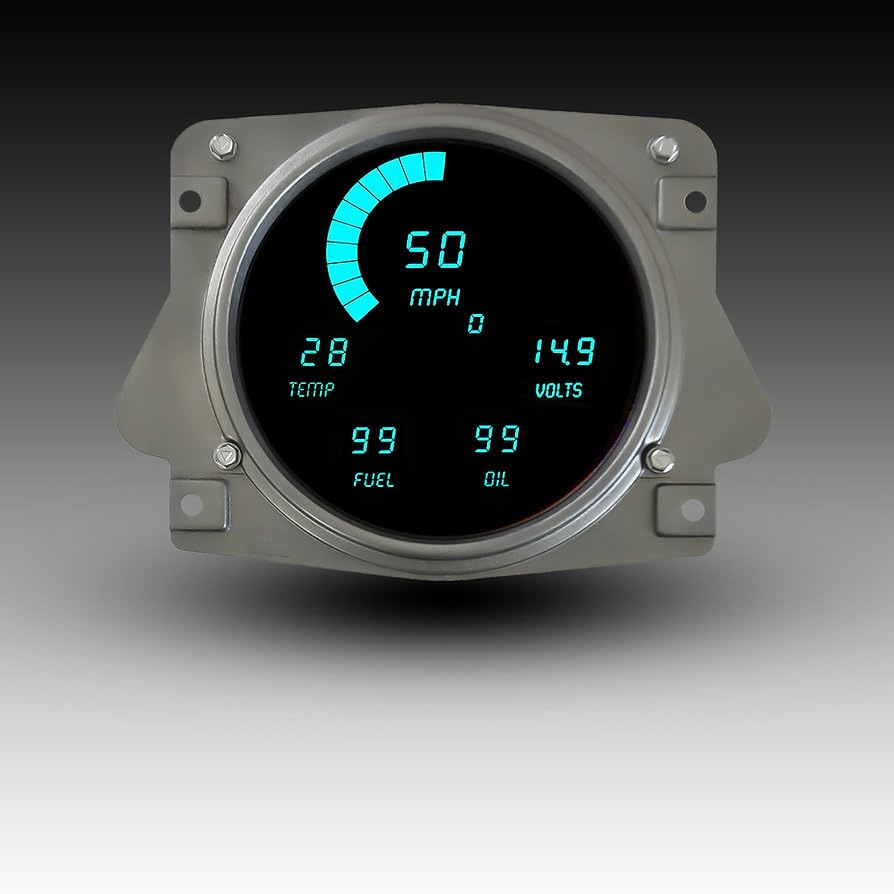

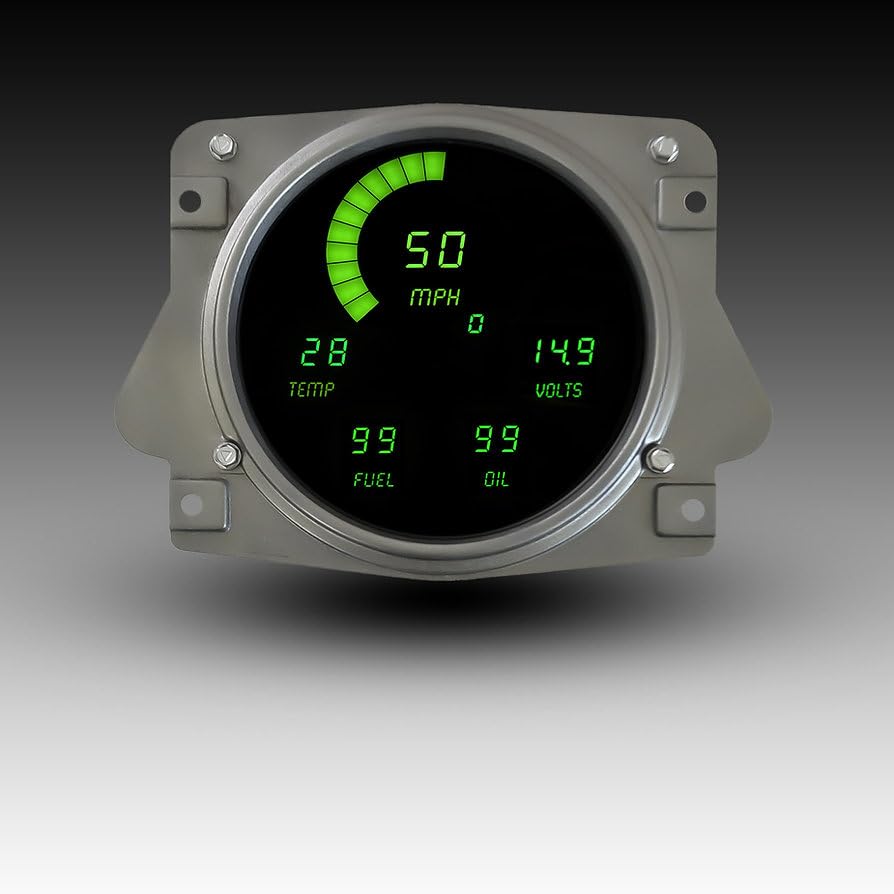

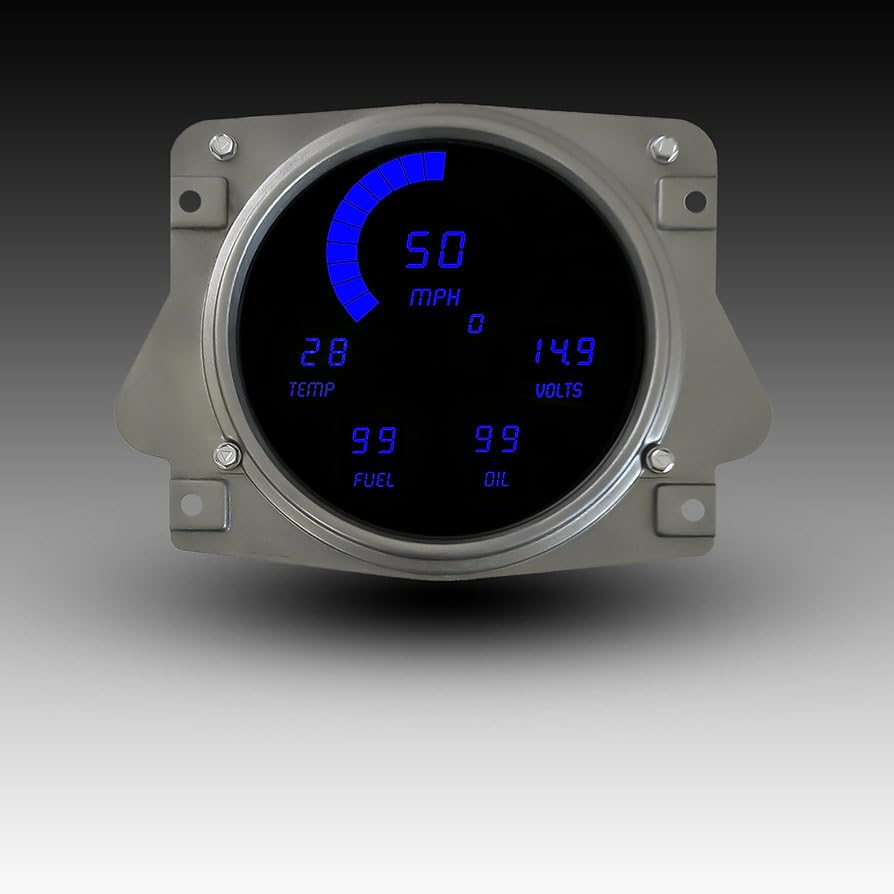

Upgrade your Bronco with a new 66-77 LED Digital Replacement Gauge Panel by Intellitronix. Complete with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal temperature, oil pressure, and speedometer sending units with sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation. Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapse time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use our S9024 universal speedometer sending unit included in the kit, if your vehicle is not equipped with a functional cruise control.

• Tachometer (built into the ODO) features a custom-designed LED bargraph with a microprocessor-controlled unit and peak rpm memory recall, automatic night dimming. It has a 0-9900 read out. It works on 1-2-4-6-8-10-12-cylinder engines.
• Water Temperature reads 50 - 250°F range and includes sending unit. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead, upon request. Make a note on your order at check-out regarding your preferred bushing size.
• Oil Pressure displays 0-99 PSI range and includes the oil pressure sending unit.
• Voltmeter reads 7.0-18.0 volts range and no sending unit is required.
• Fuel Level is programable to 4 different ohms ranges: 73-10 ohm, 16-158 ohm, 22-145 ohm and 240-33 ohm.
• BEZEL NOT INCLUDED
